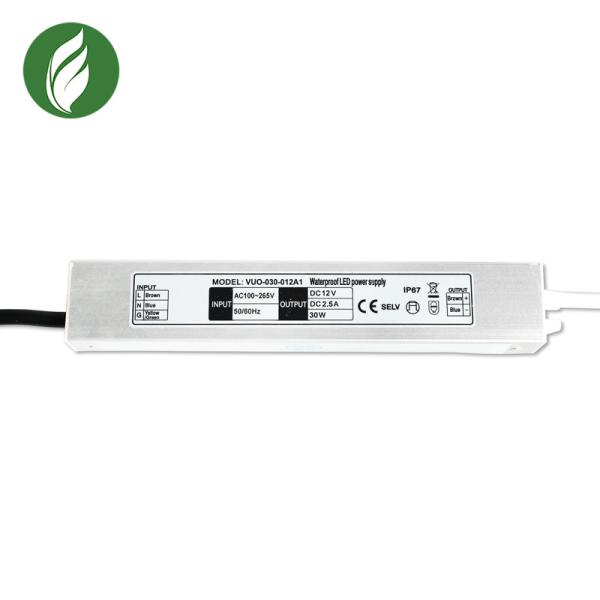

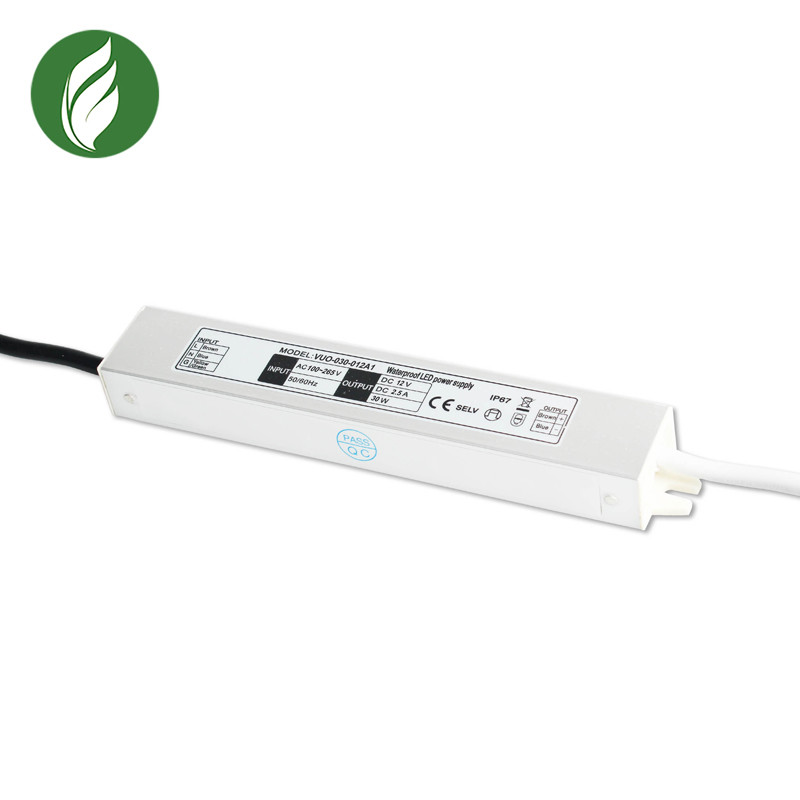

Waterproof Electronic LED Driver 12V 2.5A 30W IP67

Waterproof Electronic LED Driver Features

* Constant voltage output

* Dry, damp and wet location

* IP67 waterproof design

* Ta:-30℃ ~ +60℃

* Over voltage/over load/short circuit/over-temp protection

Waterproof Electronic LED Driver Specification

Item No.	VUO-030-012A1
Output Current	2.5A
Output Voltage	12V
Output Power	30W
Input Voltage	100-265V
Input Frequency	50/60 Hz
Dimension(mm)	L187*W30*H20(mm)
Efficiency	83%
Approval	CE RoHS SAA ETL

Data Sheet Download

VUO-030-012A1 specification.pdf

Installation Size

Why Choosing Us?

* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents

* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.

* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.

* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.

* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.

Waterproof Electronic LED Driver FAQ

1. What is your MOQ?

Our MOQ is 10pcs. For special product with client's logo and customized product, MOQ is 500pcs.
2. What can we buy from you?
Constant Voltage LED drivers, Slim LED driver, Dimmable LED driver
3. How to guarantee quality?
Always a pre-production sample before mass production, triple aging test before enter warehouse.
4. What payment terms do you support?
FOB/EXW, 30% deposit, 70% before shipment by T/T.

Founded in 2008, Zhuhai HengQin District Huawei New Energy Co., Ltd, is located in the Special Economic Zone, Zhuhai City, Guangdong Province. We are a national high-tech enterprise, specialized in the R&D, manufacturing, sales and service of LED Power Supply.

Focusing on the international management policy, we have launched the strategy of talent reserve at home and abroad to build up an outstanding talent team. Formed a strategic partnership with the University of Electronic Science and Technology of China, our company has constantly improved the professionalism of our team and continuously instilled new high-tech knowledge into the team. We firmly hold the belief that outstanding talents can create a promising future.

We currently own 19 utility patents and several invention patents. Our unique intelligent control system, high-precision automation, and lean operation have created high quality products which have obtained over ten certifications.

Huawei New Energy manufactures a series of products, such as ultra-slim waterproof power supply with 100% aluminum shell design. Super slim plastic case power supply, a full power 20W power supply with a thickness as low as 12 mm. High-end waterproof power supply with dual high PFC design has passed CE, EMC, SAA, ETL, CCC, CB, UKCA and other certifications, with 5 years warranty. Triac, DALI dimming power supply with stable operation, compatible with international mainstream dimmers.

With keen market insight and cutting-edge information of the industry, Huawei New Energy is committed to product innovation and development. With a long-term win-win relationship, we managed to be a reliable partner with customers, suppliers and employees. With high quality and best customer service, our led power supply has been sold widely and is well-known all over the world.

With more than ten years of perseverance and development, Huawei New Energy has been advancing and has never stopped to create China's first-class national brand and to be a sustainable enterprise!
