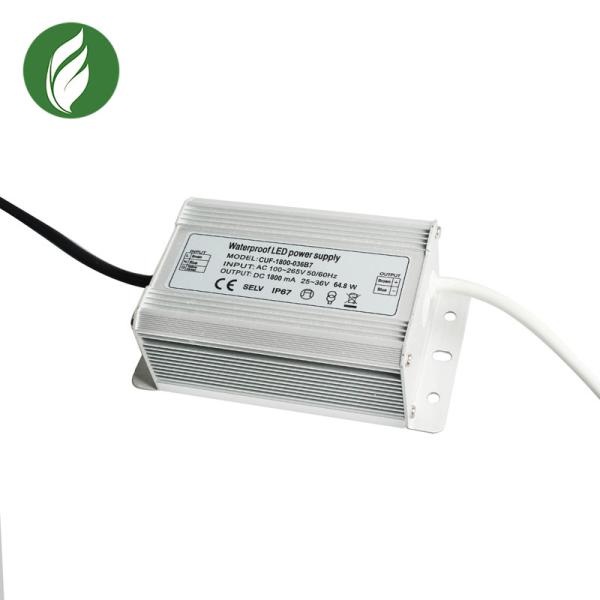

36v Transformator Constant Current LED Driver 1800mA For Outdoor

    Buy cheap 36v Transformator Constant Current LED Driver 1800mA For Outdoor from wholesalers

    Buy cheap 36v Transformator Constant Current LED Driver 1800mA For Outdoor from wholesalers
    • Buy cheap 36v Transformator Constant Current LED Driver 1800mA For Outdoor from wholesalers
    • Buy cheap 36v Transformator Constant Current LED Driver 1800mA For Outdoor from wholesalers
    • Buy cheap 36v Transformator Constant Current LED Driver 1800mA For Outdoor from wholesalers

    36v Transformator Constant Current LED Driver 1800mA For Outdoor

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : CUF-1800-036B7
    Certification : CE ROHS SAA LVD CB UKCA ERP ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 sets per month
    Delivery Time : 5-15 days after payment
    • Product Details
    • Company Profile

    36v Transformator Constant Current LED Driver 1800mA For Outdoor

    Power Supply 36v Led Driver Transformator 1800mA Constant Current Led Driver For Outdoor


    Features:

    1. Provides constant current output for stable and reliable performance.

    2. Suitable for dry, damp, and wet locations.

    3. Boasts an IP67 waterproof design, ensuring protection against water and other liquids.

    4. Can operate in temperatures ranging from -30°C to +60°C.

    5. Equipped with overload, short-circuit, and over-temperature protection for added safety.

    6. Certified with CE, IP67, and ROHS, meeting international standards for safety and environmental impact.


    Specification

    ModelCUF-1800-036B7
    OutputDC voltage25-36V
    Rated current1800mA
    Current range±100mA
    rated power64.8W
    Ripple & Noise (peak to peak)<3V
    No-load voltage<39V
    Inputvoltage range100~265VAC
    Current47~63Hz
    Power factor0.97
    effectiveness(Typ.)89%
    Alternating current(Typ.)0.4A/220VAC
    ProtectionShort circuitProtection mode: hiccup mode, abnormal conditions can be automatically restored after removal
    overloadProtection mode: constant current, abnormal conditions can be automatically restored after removal
    environmentOperating temperature-30~+50℃ (Please refer to the load reduction curve)
    Protection classIP67 Suitable for indoor and outdoor use
    Storage temperature-40~+80℃
    Safety&EMCSafety standardsSuitable for EN61347-1;EN61347-2-13;SELV;IP67
    PressureInput - Output: 2KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC
    EMC standard test
    Tips

    1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C .

    2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth.


    Company

    Since 2008, Huawei New Energy has been solely dedicated to the production of LED drivers and accessories, and boasts an experienced R&D team with numerous patents. We take pride in being one of the world's few manufacturers capable of producing ultra-thin LED drivers up to 12mm thick, such as our 20w ultra-thin power supply.


    At Huawei New Energy, we recognize that different clients and applications have unique requirements, which is why we offer customized services and one-stop solutions. Our services include parameter customization, product consulting and selection, as well as OEM/ODM services.


    Our products strictly comply with major international safety and performance standards, and undergo rigorous testing before shipment. We have confidence in the quality of our products, which are highly regarded in the market. Thanks to the trust of our partners, we have established a global sales network, including in Europe, Australia, the US, and Southeast Asia.


    FAQ

    1. Q: Do you offer OEM/ODM services?

    A: Yes, we welcome OEM/ODM orders. We can print customers' brand logo and model number on the power label, and also offer laser logos on the products' aluminum/metal casing. Additionally, we can provide user manuals, customized color boxes, customized printing cartons, and other stickers to stick on LED power supplies or boxes.


    2. Q: Do you conduct a burn-in test on your products?

    A: Yes, all of our LED transformers undergo a 100% burn-in test for 3-4 hours before packing to ensure their quality and reliability.


    3. Q: Do your products come with any certificates?

    A: Yes, our products have basic CE, RoHS, and SAA certifications, and some of them are ETL, CB, and UKCA listed. If other certificates are needed, please let us know.


    4. Q: What kind of warranty do you offer for your LED drivers?

    A: We provide a 3-year warranty for our standard products and a 5-year warranty for our high-end series.
