    Triac Electrical LED Dimming Driver 220V To 24V 42V 20W IP67 28W

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : CHM-600-042G3
    Certification : CE/ROHS/SAA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 sets per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

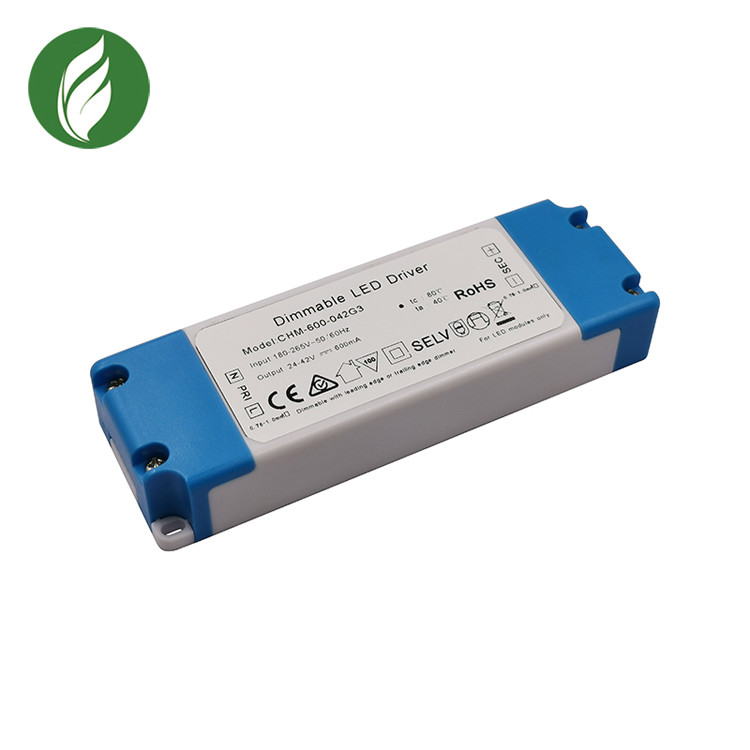

    Triac Electrical LED Dimming Driver 220V To 24V 42V 20W IP67 28W

    220V To 24V 42V 20W IP67 Triac Electrical Led Dimming Driver 28W Led Driver


    Features:

    1. This is a Triac dimmable driver that is compatible with both leading-edge and trailing-edge dimmers.

    2. The dimming range is from 0 to 100%, allowing for precise control of the lighting output. LED starting at 0.1% is possible.

    3. The driver is equipped with protection against short circuit and overcurrent, ensuring safe and reliable operation.

    4. The IP20 design makes it suitable for indoor installations.

    5. This driver is ideal for use in LED lighting and moving sign applications.


    Specification

    MODELCHM-300-008G3CHM-300-008G3-FRCHM-600-042G3CHM-600-042G3-FR
    OUTPUTDC VOLTAGE60-80V24-42V
    RATED CURRENT300mA600mA
    RATED POWER20-28W
    FLICKERNon flicker freeFlicker freeNon flicker freeFlicker free
    INPUTVOLTAGE RANGE220-240Vac
    FREQUENCY RANGE47-63Hz
    POWER FACTOR(Typ.)>0.95
    EFFICIENCY(Typ.)>88%
    PROTECTIONShort circuitProtection type: Hiccpe mode,recovers automatically after condition is removed
    Overloadconstant current
    ENVIRONMENTWORKING TEMP.-10~+40℃ (Refer to output load derating curve)
    INGRESS PROTECTIONIP67 design for indoor or outdoor installations
    STORAGE TEMP-40~+80℃
    SAFETY&EMCSAFETY STANDARDSEN61347-1;EN61347-2-13;SELV;IP67 approved
    WITHSTAND VOLTAGEI/P-O/P:3.75KVAC
    EMC Test StandardsEN55015;EN61000-3-2;EN61000-3-3
    EN61547
    NOTE1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
    2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
    3.Tolerance:includes set up tolerance,line regulation and load regulation.

    ADVANTAGE

    1. Huawei New Energy sole focus on LED drivers and accessories since 2008,which owns an experienced R&D team with dozens of patents.

    2. The ultra slim power supply is up to 12mm thicknessWe are one of the manufacturers in the world that can produce such thin LED driver in the filed of this industry.

    3. Huawei New Energy can provide customized service and give one stop solution according to different client/application.Such as parameter customization, products consulting/selection and OEM/ODMservice.

    4. Our products are strictly compliant to all major international safety and performance standards. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.

    5. The products are quite mature and highly recognized by the market.We have already built the sales network in the world thanks to the partnerstrust such as Euro, Australia, US and Southeast Asia.


    FAQ

    1. Q: Do you offer samples for testing?

    A: Yes, we offer free samples for testing and closer inspection. However, customers need to pay for the freight cost.


    2. Q: Do you provide OEM/ODM services?

    A: Yes, we highly welcome OEM/ODM orders. We can print customers' brand logo and model number on the power label, and also offer laser logo on products' aluminum/metal casing. Additionally, we can provide user manuals, customized color boxes, customized printing cartons, and other stickers to stick on LED power supplies or boxes.


    3. Q: Do you conduct a burn-in test on your products?

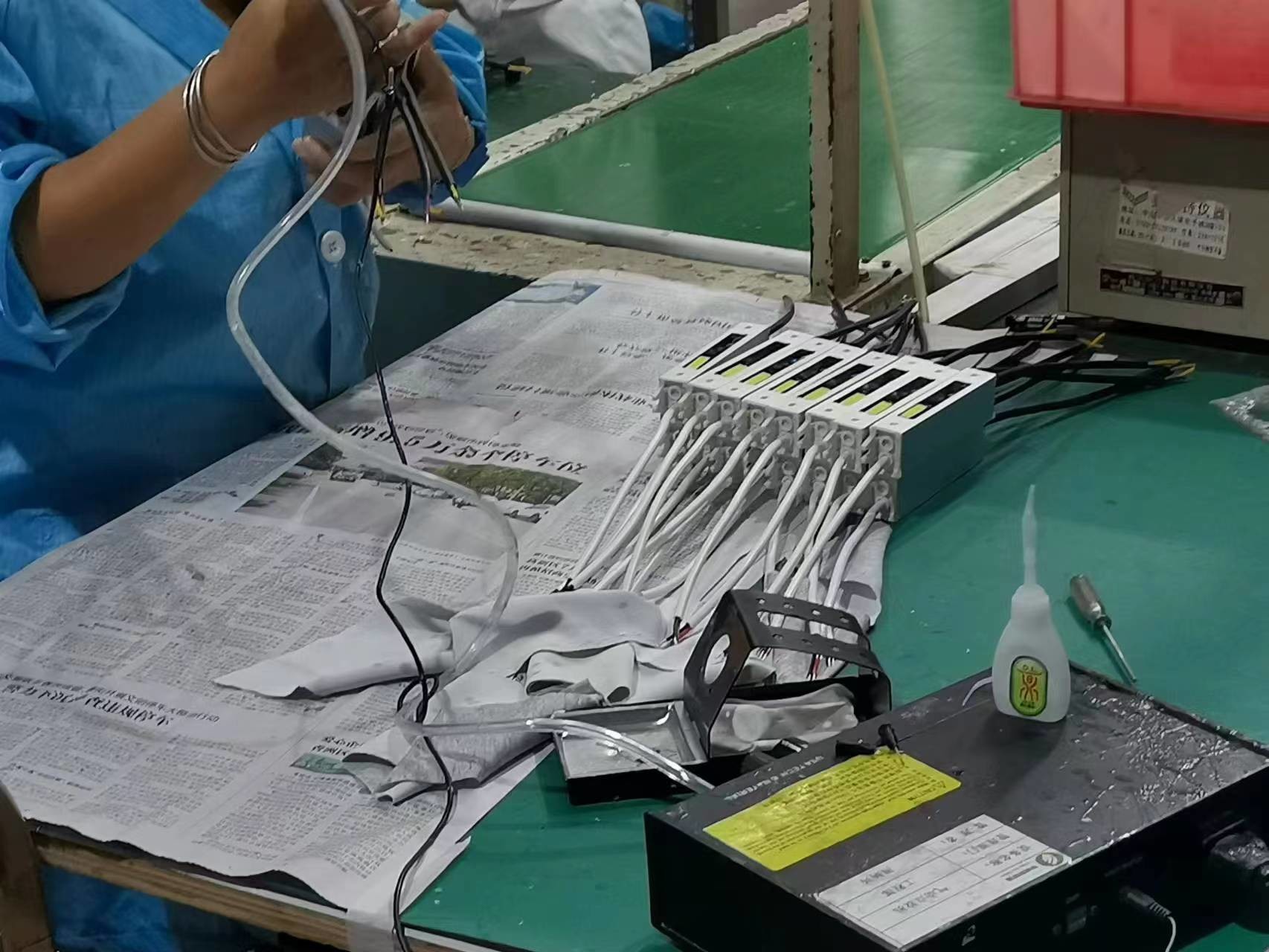

    A: Yes, all of our LED transformers undergo a 100% burn-in test for 3-4 hours before packing to ensure their quality and reliability.
