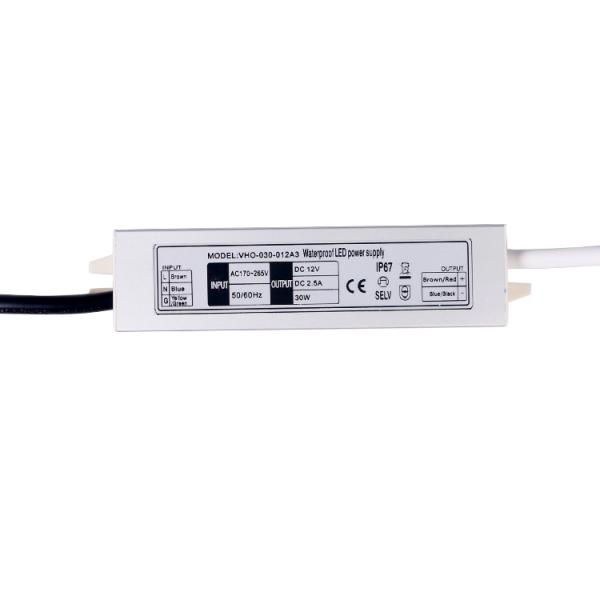

    12v 30w Ultra Slim Waterproof LED Driver Mirror 12vdc Dc 12v Constant Voltage 2500mA

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : VHO-030-012A3
    Certification : ETL,CE,SAA RoHS
    Price : Adjustable with Quantity
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 pcs Per Mont5
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    12v 30w Ultra Slim Waterproof LED Driver Mirror 12vdc Dc 12v Constant Voltage 2500mA

    12v 30w power supply ukca ce saa led mirror driver 12vdc ultra slim waterproof led driver dc 12v constant voltage


    Essential details
    Warranty(Year):
    3-Year
    Lighting solutions service:
    Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
    Product Weight(kg):
    0.15
    Place of Origin:
    Guangdong, China
    Brand Name:
    Hualiang
    Model Number:
    VHO-030-012A3
    Output Power:
    30W
    Output Type:
    Single
    Input Voltage:
    AC170-265V
    Output Frequency:
    47~63HZ
    Output Current:
    2500mA
    Product Name:
    led driver 30w
    Enclosed material:
    aluminum
    Dimension:
    132*30*20mm
    PF:
    0.5-0.7
    Weight:
    150g
    IP Rate:
    IP67
    Certification:
    ETL,CE,SAA RoHS
    Protection:
    OCP,OVP,SCP-Auto Recovery
    Customized service:
    Acceptable
    Application:
    led strip,led lamp,led light,led mirror light

    Parameters:

    ModelVHO-030-012A1
    OutputDC voltage12V
    Rated current2.5A
    Current range0-2.5A
    rated power30W
    Ripple & Noise (peak to peak)<350mV
    No-load voltage±0.5V
    Inputvoltage range170~265VAC
    Current47~63Hz
    Power factor0.6
    effectiveness(Typ.)0.82
    Alternating current(Typ.)0.22A/220VAC
    ProtectionShort circuitProtection mode: hiccup mode, abnormal conditions can be automatically restored after removal
    overload3.9A
    environmentOperating temperature-30~+50℃ (Please refer to the load reduction curve)
    INGRESS PROTECTIONIP67 design for indoor or outdoor installations
    Storage temperature-40~+80℃
    Safety&EMCSafety standardsSuitable for EN61347-1;EN61347-2-13;SELV;IP67
    WITHSTAND VOLTAGEInput - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC
    Tips1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth.

    FAQ:

    What is an Outdoor LED Driver?
    An outdoor LED driver is an electronic device that is used to power outdoor LED lighting systems. It is designed to withstand harsh weather conditions and provide reliable and efficient power to the LED lights.


    What is the difference between an Indoor and Outdoor LED Driver?
    Indoor LED drivers are not designed to withstand exposure to moisture, dust, and other outdoor elements. Outdoor LED drivers are specifically designed to operate in harsh outdoor environments and provide reliable performance in a range of weather conditions.


    What is the IP Rating of an Outdoor LED Driver?
    The IP rating of an outdoor LED driver refers to the level of protection it provides against the ingress of dust and water. A higher IP rating indicates a greater level of protection. For outdoor LED drivers, an IP rating of at least IP65 is recommended to ensure adequate protection against water and dust.


    Applications:

    1. Landscape Lighting: Outdoor LED drivers can be used in landscape lighting applications, powering LED lights that provide accent lighting for outdoor spaces, gardens, and other outdoor areas.

    2. Parking Lot Lighting: Outdoor LED drivers are commonly used in parking lot lighting applications, providing energy-efficient lighting for parking lots and other outdoor parking areas.

    3. Industrial Lighting: Outdoor LED drivers can also be used in industrial lighting applications, powering LED lights that provide bright and efficient lighting for warehouses, factories, and other industrial facilities.
