Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W

    Buy cheap Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W from wholesalers

    Buy cheap Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W from wholesalers
    • Buy cheap Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W from wholesalers
    • Buy cheap Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W from wholesalers

    Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : CHM-900-042G4
    Certification : CE/ROHS/SAA
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 sets per month
    Delivery Time : 20~25days
    • Product Details
    • Company Profile

    Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W

    Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W

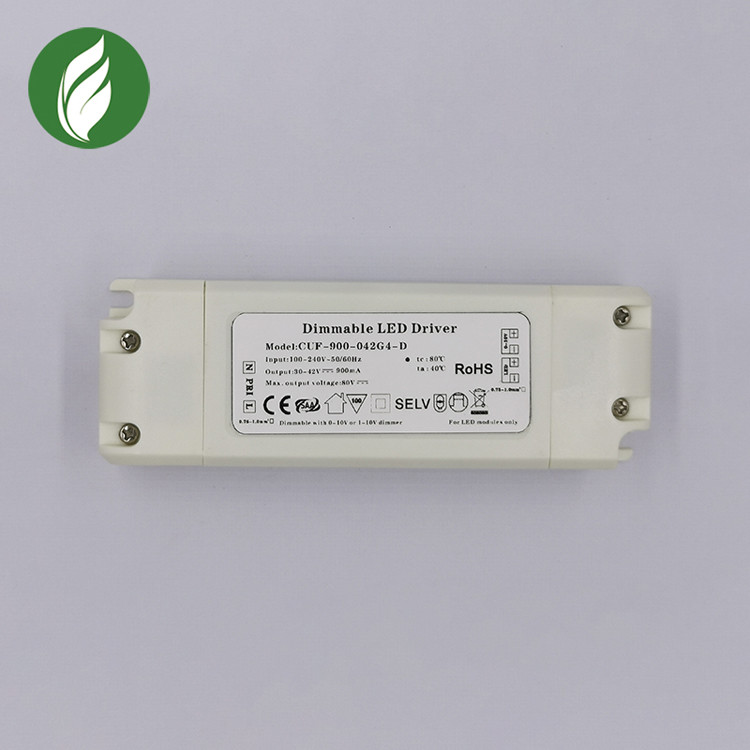

    New 30W 40W 50W 30V 42V Ultralight Magnitude Slim Current Dimmer Led Driver


    Features:

    1. This is a Triac dimmable driver that is compatible with both leading-edge and trailing-edge dimmers.

    2. The dimming range is from 0 to 100%, allowing for precise control of the lighting output. LED starting at 0.1% is possible.

    3. The driver is equipped with protection against short circuit and overcurrent, ensuring safe and reliable operation.

    4. The IP20 design makes it suitable for indoor installations.

    5. This driver is ideal for use in LED lighting and moving sign applications.

    6. It comes with a 5-year warranty, providing peace of mind and assurance of quality.


    Product Description
    MODELCHM-600-080G4CHM-600-080G4-FRCHM-900-042G4CHM-900-042G4-FR
    OUTPUTDC VOLTAGE60-80V30-42V
    RATED CURRENT600mA900mA
    RATED POWER30-48W
    FLICKERNon flicker freeFlicker freeNon flicker freeFlicker free
    INPUTVOLTAGE RANGE220-240Vac
    FREQUENCY RANGE47-63Hz
    POWER FACTOR(Typ.)>0.95
    EFFICIENCY(Typ.)>88%
    PROTECTIONShort circuitProtection type:Hiccpe mode,recovers automatically after condition is removed
    Overloadconstant current
    ENVIRONMENTWORKING TEMP.-10~+40℃ (Refer to output load derating curve)
    INGRESS PROTECTIONIP67 design for indoor or outdoor installations
    STORAGE TEMP-40~+80℃
    SAFETY&EMCSAFETY STANDARDSEN61347-1;EN61347-2-13;SELV;IP67 approved
    WITHSTAND VOLTAGEI/P-O/P:3.75KVAC
    EMC Test StandardsEN55015;EN61000-3-2;EN61000-3-3
    EN61547
    NOTE1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
    2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
    3.Tolerance:includes set up tolerance,line regulation and load regulation.

    Ultralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50WUltralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50WUltralight Magnitude Slim Current Dimmer Led Driver 30W 40W 50W

    Application:

    1. LED strip lights, LED neon, and LED urban decoration for artistic and decorative lighting.

    2. Mirror lights for enhancing visibility and aesthetics.

    3. Cabinet lights for illuminating spaces and highlighting features.

    4. LED lighting advertising and LED displays for showcasing information or multimedia content.

    5. LED letter lights for creating illuminated signs and designs.

    6. Safety protection apparatus for ensuring safety in hazardous environments.


    FAQ

    1. Q: Do you offer samples for testing?

    A: Yes, we offer free samples for testing and closer inspection. However, customers need to pay for the freight cost.


    2. Q: Do you provide OEM/ODM services?

    A: Yes, we highly welcome OEM/ODM orders. We can print customers' brand logo and model number on the power label, and also offer laser logo on products' aluminum/metal casing. Additionally, we can provide user manuals, customized color boxes, customized printing cartons, and other stickers to stick on LED power supplies or boxes.


    3. Q: Do you conduct a burn-in test on your products?

    A: Yes, all of our LED transformers undergo a 100% burn-in test for 3-4 hours before packing to ensure their quality and reliability.
